Laser Analyzers
Aerodyne’s family of laser trace gas analyzers provide real-time molecular monitoring with fast time resolution (as fast as 20 Hz) and with exquisite sensitivity – in the low parts per trillion range for many species.
TILDAS Trace Gas Analyzer
Use the filters below to explore many of the trace gas species the instrument can be configured to detect
- All
- N₂O
- C₂H₆
- OCS/COS
- EtO
- NH₃
- HCHO
- CO
- CH₄
- C₂H₂
- HONO
- HNO₃
- HCOOH
- O₂
- SO₂
- H₂
- CO₂
- N₂O Isotopes
- CH₄ Isotopes
- CO₂ Isotopes
TILDAS Trace Gas Analyzer
Tunable Infrared Laser Direct Absorption Spectroscopy (TILDAS) Laser Trace Gas Analsyzers have hundreds of possible combinations so we are happy to design and construct customized configurations as needed.
TILDAS Accessories
Multi Selector System and Soil Probes
A flexible, field-deployable gas probe array for monitoring biogeochemical changes in ecological and agricultural research.
Field Enclosure
Rugged, field-ready with a corrosion free design. Ideal for long-term deployments.

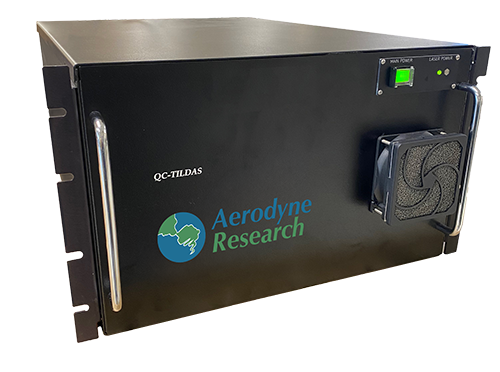

The TILDAS Compact Single Laser Trace Gas Analyzer is a compact, single laser trace gas analyzer. It is our smallest and most economical laser trace gas instrument. The instrument can be configured to detect many trace gas species including NO, N2O, NO2, NH3, CO, CO2, CH4, C2H6, COS, HCHO, O3, EtO and many others.

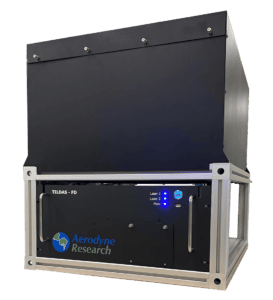

The TILDAS Dual Laser Trace Gas Analyzer enables the simultaneous measurement of multiple species using two multiplexed lasers. Many different molecules can be measured with TILDAS, but only a small subset of that list can be monitored with any specific pair of lasers. Typically, each laser can measure one to three molecular species. Depending on which lasers are selected, a dual laser analyzer can detect between two to six molecular species. There are hundreds of possible combinations so it is not feasible to list all the possibilities.
These instruments rely on rapid sweep Tunable Infrared Laser Direct Absorption Spectroscopy (TILDAS) implemented with long path Astigmatic Multi-pass Absorption Cells (AMAC).
TILDAS Dual Laser Trace Gas Analyzer
