miptof

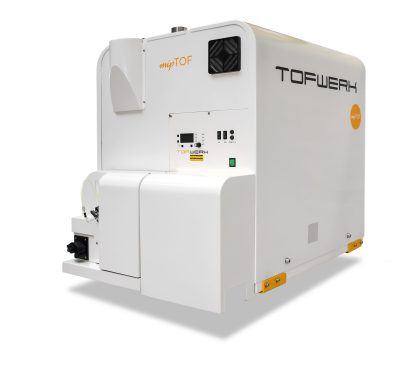

Microwave Induced Plasma Time-of-Flight Mass Spectrometry
mipTOF
Field Deployable Real-Time Analysis of Trace Elements and Metals in Air
Metal Detection in Individual Aerosol Particles
-
High-Power Plasma Source
Microwave-sustained inductively coupled atmospheric plasma (MICAP, RADOM Instruments), operable with N2 gas or air -
Field Deployable
On-site gas generation eliminates the need for gas cylinders
-
Real-Time Sampling
Direct, real-time air sampling for continuous particulate analysis of ultra-fine, fine and coarse mode detection -
Maximum Sensitivity
Detection of elements in individual particles at atto- to femtogram detection limits
Specifications
| Parameter (unit) | Specified Value |
|---|---|
|
Mass Resolving Power, M/ΔM at FWHM |
3,000 |
|
Power Requirements (kW) |
Active: 5.5, Standby: <0.35 |
|
mipTOF Dimensions, L x W x H (cm) |
132 x 83 x 115 |
|
mipTOF Mass (kg) |
195 |
|
Supplies Unit Dimensions, L x W x H (cm) |
126 x 83 x 101 |
|
Supplies Unit Mass (kg) |
225 |
